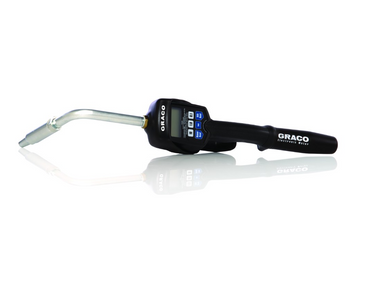

LD Series Electronic Meters

LD Series Electronic Meters

Contact Rick for Info & Pricing
901-359-4922

Product Description

1-download-manual.jpg      1-brochure.jpg

Manual and Preset Fluid Meters and Valves

Fluid dispense and management has never been easier

Graco's LD series meters are ideal for metered oil and dispense for lighter duty applications, including small maintenance shops, tire-muffler shops, fast-lubes, independent repair facilities and lower volume in-plant applications.


  • Designed for indoor use, with standard flow rates of 5 gpm (18.9 lpm)
  • Manual and preset meters with a number of optional accessories to choose from
  • Easy to read LCD display with durable switches for long life
  • Two-finger trigger; LDP5 models feature a latching trigger to reduce operator fatigue
  • Rugged meter body for superior impact resistance and long life
  • Ergonomically-designed handle for operator comfort
  • View values in metric units.



    LDM5 and LBP5 Electronic Metered Dispense Valves
    Flow Range (Tested in No. 10W motor oil. Flow rates vary with fluid pressure, temperature and viscosity)
    01 to 5 gpm
    Maximum Working Pressure
    1000 psi
    Weight
    3 lb
    Inlet
    1/2” npt, 1/2” BSPP, 1/2” BSPT
    Outlet
    3/8” npt
    Operating Temperature Range
    32°F to 120°F
    Storage Temperature Range
    -30°F to 120°F
    Battery (Battery required to meet safety approvals: Duracell® MN1604 or Eveready® EN22, 522)
    9 volt alkaline
    Wetted Parts
    Stainless steel, nitrile rubber, zinc, CS, LCP
    Fluid Compatibility
    Lubricating oils, antifreeze mixtures
    Pressure loss Accuracy
    90 psi @ 5 gpm +/- 0.5% (At 2.5 gpm, at 70° F, with 10W motor oil and 1 gal dispensed. May require calibration; out-of-box accuracy is +/- 1.25%)
    Units of Measurement
    Pints, quarts, gallons, liters (factory set in quarts)
    Maximum Totalizer Amount
    99,999 units
    Maximum Recorded Dispensed Volume
    999.99 units
    Maximum preset volume (LDP5 Meter only
    99.99 units
    Dimensions without extension/nozzle
    Length
    11 in
    Width
    3.25 in
    Height
    3.25 in


Materials

  • Antifreeze

  •
  • Motor Oil

  •
  • Gear Oil

  •
  • Oil
