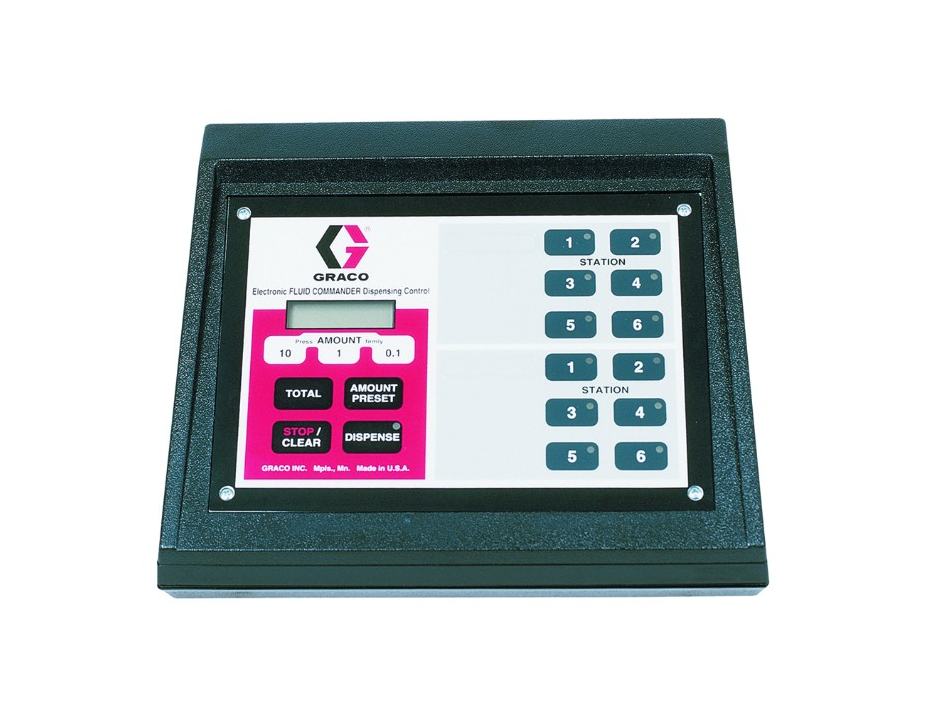

Accurately dispenses pre-set quantities of transmission fluid, oil and anti-freeze with this easy-to-use, electronic fluid management system.
Electronic Dispensing Control | |
Fluid System Max. Working Pressure |
1500 psi
|
Power Input |
110/120 volt, 60 Hz
|
Main Supply Voltage Fluctuations |
Not to exceed + 10% of the nominal voltage
|
Circuit Breaker |
0.40 amp
|
Totalizing Unit of Measurement |
Gal to 19999
|
Dispensing Unit of Measurement |
0.01 increments up to 199.99 Pints, Quarts, Gallons, or Liters
|
Power Supply Cord |
7.5 ft, 18 AWG, 3 conductor, molded vinyl plugs, 125 Vac,
|
Control Power Output |
24 Vdc nominal at 0.60 amp maximum to any (1) fluid valve and any (1) air valve simultaneously
|
Backup Battery |
Lithium, 3.6 volt, 1.0 amp hour capacity (not replaceable)
|
Internal Fuses |
2.5 amp, 250 volt, non-serviceable
|
Operating Temperature Range (If the control is operated at higher ambient temperatures, periods of no flow must be more frequent and longer to prevent overheating.) |
+41°F to +104°F
|
Storage Temperature Range |
–20°F to +150°F
|
Maximum Relative Humidity |
80% for temperatures up to 88°F, decreasing linearly to 50% relative humidity at 104°F
|
Installation Category |
II, indoor use only
|
Altitude |
Up to 6562 ft
|
Pollution Degree |
2
|
Control Dimensions | |
Length |
8 in
|
Width |
10 in
|
Height |
4 in
|
Weight |
4.5 lb
|
