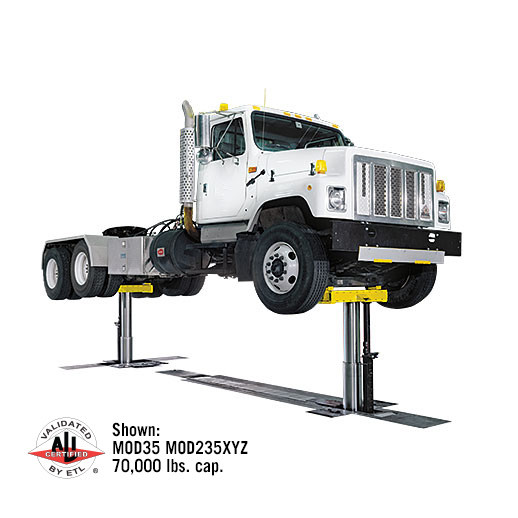

THE MODULAR INGROUND LIFT: REINVENTED BY THE COMPANY THAT INVENTED IT.

The new MOD35 is the next generation of heavy-duty inground lifts from Rotary Lift. We took the same industry-leading features of the MOD30 and added a variety of new, game-changing enhancements our customers requested.

The MOD35 inground lift is totally contained in a 6' enclosure protected with Rotary's exclusive Enviroguard™ coating. This environmentally friendly lift is the most versatile and inventive lift ever to hit the truck service industry. Both housings are recessed for "zero clearance" drive-thru when the lift is in the down position.

NEW
Patent-Pending Pendant Only Controls, this standard remote control system operates all of the lift's features away from the lift console maximizing shop productivity and visibility of the vehicle during operation. Joystick-equipped with infinite variable speed control of fore/aft and up/down operation of the lift plus fine adjustment of the lifting carriage or moveable piston. Contains a protective guard to prevent accidental engagement when not in use.

NEW
System Monitoring and Added Control Features Programmable height and wheelbase settings for up to 25 preset vehicle locations. The separately located, wall-mounted console eliminates clutter and adds more floor space in each bay.

All Rotary Lift universal saddles offer a greater adjustment range than any other, making lift set-up faster and easier for technicians. Every saddle and most adapters are electrocoated to provide a long-lasting, automotive-quality finish. Rotary Lift offers the industry's widest selection of third-party certified lightweight adapters for maximum flexibility and versatility. Unlike other designs, most of Rotary Lift's adapter inserts swivel a full 360 degrees for unmatched adjustability.

Rotary Lift has created several kits that include the most popular adapters for specific applications. Transit fleet managers can also consult the company's Adapter Selection Guide and work with their local lift distributors to determine the best adapters for their specific needs.

The MOD35 is contained in a 6-foot-deep steel enclosure that has been sealed with the exclusive Rotary Lift EnviroGuard coating, which also coats the axles of our greaseless bearings for maintenance-free performance. Our patented Liquid Detection System monitors the lift and signals the tech as liquid accumulates in the containment. Built-in access ports allow for easy fluid evacuation.

---

PATENTED UNIVERSAL STYLE LIFTING SADDLES

Customers can choose from four patented saddles:

• Ultra-low-profile: With the lowest profile in the industry at just 2½ inches tall, this saddle offers excellent drive-over clearance and can be retracted completely into the ground for zero obstructions when not in use. Use with low-profile inserts to pick up low-floor and kneeling buses.


• Low-profile: For many customers, this "standard" front saddle is ideal for most jobs. It's 4⅛ inches tall, with a maximum reach of 40½ inches, thanks to two sliding adapters.


• Low truck front (T-style): This 4¾-inch tall saddle offers the widest reach, at 55½ inches, to facilitate picking up vehicles that don't have a solid front axle.


• Tall rear: Designed specifically for the rear post, this saddle features six insert receptacles (all of the front saddles can accommodate two inserts each) that slide left and right to provide an incomparable pick-up range, as well as the flexibility to reach into areas that other adapters can't access.


• Ultra-low-profile model shown below.
