Y-Lift

Contact Rick for Info & Pricing
901-359-4922

Product Description

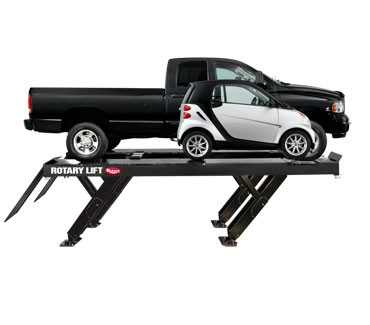

Rotary Lift's 12,000 lbs. capacity Y-Lift uses a patented design to provide faster up/down speeds, more work area and access under the lift than traditional scissor lifts. With a 33% faster rise and 20% more workspace. You will have all the room you need to make repairs with a faster and more productive lift!

The Y-Lift's  patented open design eliminates the restrictive scissor arms and corner posts common to other styles of drive-on lifts, so technicians have more room to work. Gain full vehicle access from side-to-side and front-to-rear for the technician.  The Y-Lift maximizes rise speed based on the weight of the vehicle - up to 50 percent faster than a scissor and four-post lifts with the same 12,000 lb. capacity! The faster rise time means technicians using a Y-Lift can complete service quicker.

Y12

12,000 lbs.

The Y-Lift Will Help You Maximize Speed, Performance and Reliability!



  •  True Vertical Movement And Compact Footprint
  •  Gives Technicians More Room To Work
  •  Flat Top Surface
  •  Innovative Weight Sensing Operation
  •  ALI Gold Certified (Y12NX)
Specification Y12 Y12-EL
Open/Closed Front Open Front & Rear Open Front & Rear
Rise 68 3/16" 68 3/16"
Overall Length 21' 8" 22' 6"
Overall Width 7' 4" 7' 4"
Max. Wheelbase 179 1/2" 189 1/2"
Motor 2 HP 2 HP
Voltage 208v-230v 208v-230v
Min. Bay Size 13'x26' 13'x26'

YA12

12,000 lbs.

Why the Y-Lift?

Because your service operation needs speed, performance and reliability to increase productivity and add dollars to your bottom line. That’s “Y”.

  •  True Vertical Movement And Compact Footprint
  •  Gives Technicians More Room To Work
  •  Alignment Service
  •  Innovative Weight Sensing Operation
  •  ALI Gold Certified (YA12NX)

When it's time for alignments, the Y-lift can handle them all - from tiny 71-1/2" wheelbases up to 158" giants. And, it's compatible with all leading alignment instrumentation, including 3D and camera wheel alignment systems.  Unlike a parallelogram, the YA12 provides true up/down lifting. There is no forward or rearward movement reducing valuable bay space.

YA12 includes adjustable radius gauge pockets, oversize rear slip plates, (2) RJ6000 rolling jacks, internal airline, filter regulator lubricator and turnplate filler kit.  Radius gauges not included.

Specification YA12 YA12-EL
Capacity 12,000 lbs. 12,000 lbs.
Rise 68 3/16" 68 3/16"
Overall Length 260" 270"
Overall Width 88" 88"
Length of Runways 202" 212"
Max. Wheelbase 179 1/2" 189 1/2"
Max. 2-Wheel Align 164 1/2" 174 1/2"
Max. 4-Wheel Align 158" 158"
Min. 4-Wheel Align 71 1/2" 71 1/2"
Width of Runways 24" 24"
Height of Runways 11 3/16" 11 3/16"
Width Between Runways 40" 40"
Rise Time 37 seconds 37 seconds
Lowering Time 45 seconds 45 seconds
Power 208v-230v 208v-230v
